A new range of polyamide design castors that will compliment any decor. Ideal for home, shopfitting,
rehab, medical, catering, display applications and more. |
| Smooth and Reliable |
|
Wheel sizes in this range are 75mm, 100mm which carry 70kg each.
Heavy duty versions have 100mm or 125mm wheels at 100kg or 110kg.

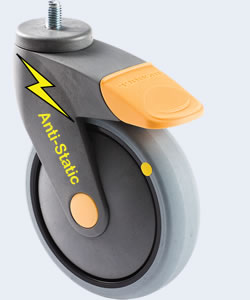

Available with or without brake option. Anti-Static option is also available.
Standard colour is mid grey & dark grey for Anti-static. |
 |
 |
Tread width is 32mm
Plate size is 77mm x 67mm
Bolt hole size 10mm
Bolt fixing M10 x 16mm

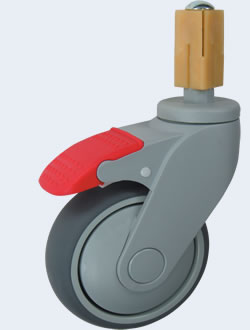

Expander sizes (Internal size of Tube) Round 18, 22, 25, 28, 37
Square 17, 22, 27,37
Brake colour on total stop Red
Direction lock Dark Grey
On Anti-Static total stop Yellow
Direction lock Dark Grey |
 |
|
 |
