A comprehensive range of high load to height ratio castors for use in applications
where a low working height is desirable.
|
|
 |
| Wheel Dia (mm) |
Overall Height (mm) |
Swivel Radius (mm) |
Tread Width (mm) |
Load Cap. (kg) |
Wheel
Type |
Bearing Type |
Top
Plate
(mm) |
Fixing Centres (mm) |
Bolt
Dia
(mm) |
Part No |
| Swivel |
Fixed |

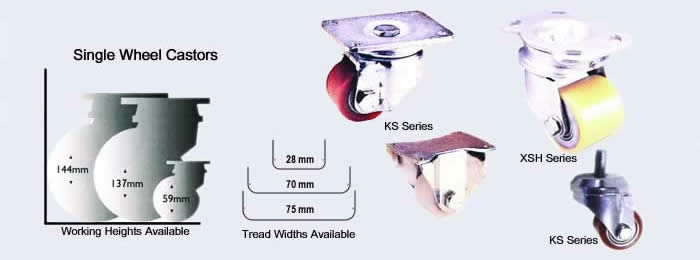

| KS Series: Heavy duty |
| 82 |
137 |
86 |
70 |
650 |
Polyurethane |
Ball Journal |
175 x 140 |
140 x 140 |
15 |
KS8270PTB |
KF8270PTB |
| 82 |
137 |
86 |
70 |
650 |
Nylon |
Ball Journal |
175 x 140 |
140 x 140 |
15 |
KS8270PTB |
KF8270PTB |
| XSH Series: Medium / Heavy Duty *Direction locks are available on these - add suffix 'D' to Part No |
|
85 |
144 |
100 |
75 |
600 |
Polyurethane |
Ball Bearing |
150 x 110 |
120 x 60 |
12 |
XSH 085 PT2MZ |
XFH 085 PT2M |
|
85 |
144 |
100 |
75 |
410 |
Nylon |
Ball Bearing |
150 x 110 |
120 x 60 |
12 |
XSH 085 NY2MZ |
XFH 085 NY2M |
| KS Series: Light / Medium duty |
| 35 |
59 |
33 |
28 |
100 |
Polyurethane |
Ball Bearing |
- |
- |
10 x 20 |
KS035PTBST |
- | |
|
 |
| Wheel Dia (mm) |
Overall Height (mm) |
Swivel Radius (mm) |
Tread Width (mm) |
Load Cap. (kg) |
Wheel
Type |
Bearing Type |
Top
Plate
(mm) |
Fixing Centres (mm) |
Bolt
Dia
(mm) |
Part No |
| Swivel |
Fixed |
|

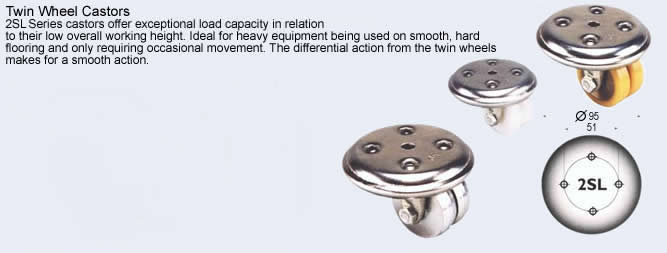

2SL Series |
|
50 |
64 |
50 |
2 x 14 |
160 |
Polyurethane |
Plain |
95 |
51 P.C.D. |
6 |
2SL 050 PTOL |
- |
|
50 |
64 |
50 |
2 x 14 |
270 |
Steel |
Plain |
95 |
51 P.C.D. |
6 |
2SL 050 STOL |
- |
|
50 |
64 |
50 |
2 x 14 |
160 |
Nylon |
Plain |
95 |
51 P.C.D. |
6 |
2SL 050 NYOL |
- |
2SL Series are designed to be used with M6 countersunk head screws.
|
